Product Information
Description

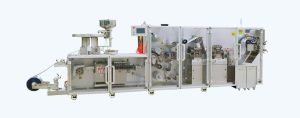

PT-DPH200 blister packing machine is special for packing tablets, capsules and little things etc.
Automatically complete the following functions:
PVC feeding, PVC heating, PVC forming, batch number, cutting, blister output.
Structure and principle
- Heating station (plate heating) and forming station(plate forming)
- Forming system and Feeding system
- Multifunction feeder
- Camera inspection
- Heat sealing station (roll-type heat sealing)
- Batch number station and Perforation station
- Discharge system
- Siemens touch screen and Pneumatic system
- Electrical cabinet
Technical Date
| Speed | Max cutting speed | 240cut/min |
| Max PVC line speed | 10m/min | |
| Material | PVC | Thickness: 0.25～0.4mm |
| Max width: 220mm | ||
| Reel core diameter：75～76mm | ||
| Max reel diameter：240mm | ||
| Max forming depth | 20mm | |
| Max forming area | 200x230mm2 | |
| Max index length | 240mm | |
| Max cutting length | 106mm | |
| Power | Supply | AC380V/3-Phases/50Hz |
| Consumption | about 10kw | |
| Air | Pressure | 0.6～0.8Mpa |
| Water | Consumption | about 0.2m3/h |
| Temperature | 15～20℃ | |
| Dimension (L*W*H) | about 4000x1250x2200mm3 | |
| Weight | about 2500kg | |
| Noise | < 75dB |
