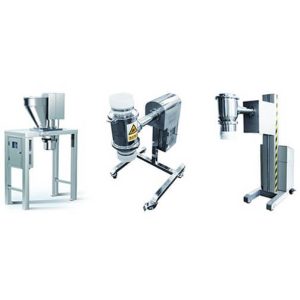

Product Description: The Conical mill is a size reduction machine widely used in the pharmaceutical, food, and fine chemical industries. Our currently available GMP-certified model impresses with its high efficiency and easy handling. Operation procedure: raw material first enters the feed inlet of the grinding/granulating machine, then the conical sieve chamber. In the chamber, the rotating impeller forces the granules to the sieve mesh surface, where they are sized and passed through the openings. Once finished, the final product is collected through the milling chamber to a receptacle underneath. The size of ground particles can be customized by adjusting the sieve mesh type, the gap between the rotary knife and sieve mesh, and the rotary speed.
Features:
- No contamination of material is by the debris of worn sieve mesh as in a pendulum-type granulating machine.
- The unique patented shaft sealing technology ensures no leakage of lubrication oil.
- The size of granularity is easily controlled.
- No retention of raw material in dead corners, and no material overheating.
- Less dust, no vibration, low noise.
- High efficiency, energy saving, large production capacity.
- Attractive appearance, easy to clean.
- A-type machine meets the requirement of a 100-grade workshop.
- All indirectly product-wetted surfaces are made of stainless steel
Technical data:
|
Model |
100 | 150(A) | 300(A) | 450(A) | 700(A) | 1000(A) |
| Capacity of cone mill (kg/h) | 10-100 | 15-150 | 30-300 | 45-450 | 70-700 | 100-1000 |
| Granularity (mesh) | 6-40 | 6-80 | ||||
| Drive seat temperature rise（℃） | <30 | |||||
| Range of speed regulation（rpm） | 100-1450 | FZB series frequency control 300-3600 | ||||
| Motor power（kW） | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 5.5 |
| Overall dimension(L×W×H)(mm) | 850*500*1050 | 720*445*1345 | 810*445*1345 | 920*445*1430 | 1000*500*1530 | 1100*600*1875 |
