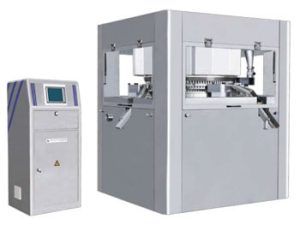

Product Information
Common Features
Adopts PLC control with auto protective function.
Touch screen operation. Operation menu is easy to understand.
Force-feeding unit with a good applicability to powder.
Central auto lubrication system.
Main and pre-pressing, tablets formed twice.
Unique features of GZP series
Auto compensation of powder.
Monitoring pressure of each punches and displays the pressure on the touch screen. There are two chutes for qualified tablets and defective tablets. Defective tablets can be rejected from one chute.
Force-feeding system is capable to increase the feeding ability and prevent thick granules separating from fine granules effectively.
All the parts are easy to be fixed, disassembled and cleaned.
Technical date
| Model | GZP26 | GZP32 | GZP40 | GZP51 | GZP68 |
| Number of Stations | 26 | 32 | 40 | ||
| Tooling Type | D | B | BB | ||
| Output Range (tablets/h) | 34000～171600 | 42000～211200 | 52000～264000 | ||
| Rotation Speed Range (rpm） | 22～110 | ||||
| Main Pressure | 100KN | ||||
| Pre-Pressure | 16KN | ||||
| Max Filling Depth | 20mm | ||||
| Tablet Thickness Range | 0.5～8mm | ||||
| Max Tablet Diameter | Ф25mm | Ф16mm | Ф13mm | ||
| Max Irregular Tablet Length | ≤25mm | ≤19mm | ≤16mm | ||
| Die Diameter | Ф38.1mm | Ф30.16mm | Ф24mm | ||
| Punch Diameter | Ф25.35mm | Ф19.00mm | |||
| Punch Length | 133.60mm | ||||
| Working Noise | ≤82dB | ||||
| Main Motor Power | 7.5KW/380V，50Hz，3-phase 5-wire | ||||
| Dimension | 820×1100×1750 mm | ||||
| Weight | 1450kg | ||||
| Notice | Maximum means that the tablet is circular type, the tablet diameter is minimum, and with the highest rotating speed, the production our tablet press can achieved. With different tablet diameter and different tablet type, the production is different | ||||
