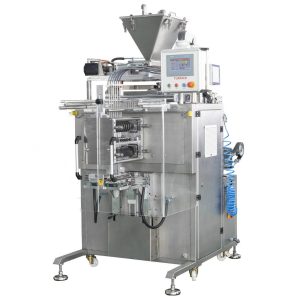

Sachet Packing Machine

Product Information
Introduction
The machine is suitable for pharmaceutical industry, food and Cosmetics industry. Power, tablets, Viscous material can be packed in bag by this machine.
Features
- Small size, compact structure and running stable.
- Four sides sealing, can pack more bags at the same time, high efficiency.
- PLC automatic control, frequency control, reliable function, easy operation.
- Photoelectric tracking and detection of the printed mark, and servosystem correct it, Ensure the integrity of bag-sided pattern, Position accuracy.
- Filling, sealing, batch No.printing, perforation and cutting can be operated by touch screen.
- No need change parts when the length of bag changed.
Technical data
| Item | Parameters |
| Bag width | 50-150mm |
| Filling weight | 60-180mm |
| Max efficiency | 400bags/min |
| Number of vertical cutting | 8 |
| Alu-Pvc Composite film | |
| Packing materials | paper-plastics Composite film |
| plastics-plastics Composite film | |
| Max width | 900mm |
| Outside diameter | Φ300mm |
| Inside diameter | Φ70mm-Φ76mm |
| Water consumption | 3.2liter/min |
| Connected load | 6kw |
| Power supply | 380V/50Hz |
| Weight | 1200kg |
| Dimension(L*W*H) | 1500*1540*2200mm |
